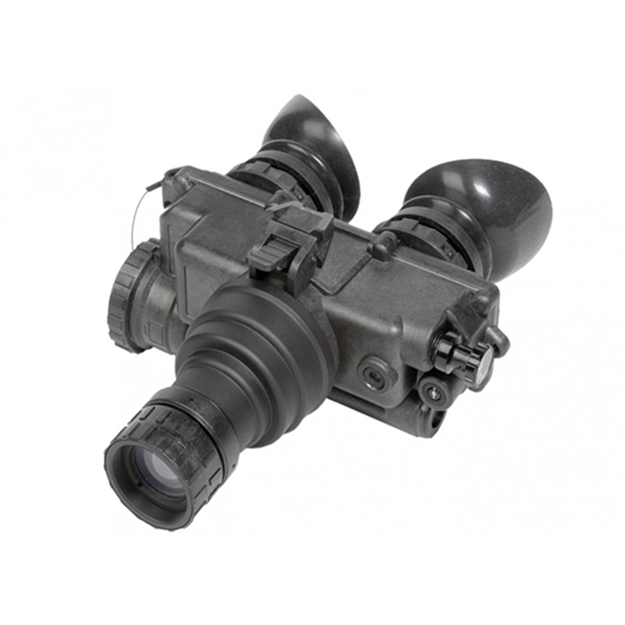

Agm Pvs-7 3Nl3 Night Vision Goggle

The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight tough and versatile the PVS-7 can be handheld or mounted to the user
s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing. - Compact rugged design - Waterproof - Head or helmet-mountable for hands-free operation - Ergonomic simple easy-to-operate controls - Built-in Infrared illuminator and flood lens - Limited 3-Year Warranty - Specifications - Image Intensifier Tube: Gen 3 Level 3 - Resolution: 64 lp/mm - Field of view cleanness by zone: Gen3 IIT 3NL3 - Magnification: 1x - Lens System: 27 mm; F/ 1.2 - FOV: 40
- Focus Range: 0.2 m to infinity - Diopter Adjustment: -6 to +2 dpt - Led Indicators: Low battery; IR On; Excessive light conditions - Automatic Brightness Control: Yes - Infrared Illuminator: Yes - Bright Light Cut-Off: Yes - Automatic Shut-Off System: Yes - Battery Type: 2 AA Alkaline or 1 Lithium (BA-5567/ U) - Battery Life (Operating): Up to 60 hours at 20
C - Operating Temperature Range: -40
C to +50
C (-40
F to +122
F) - Storage Temperature Range: -50
C to +70
C (-58
F to +158
F) - Weight: 0.68 kg (1.5 lbs) - Overall Dimensions: 162
152
76 mm (6.4
6.0
3.0 in) - Package Includes: Head Mount Assembly Medium & Thick Brow Pads Eye Cups Soft Carrying Case Daylight Filter Shoulder Strap Lens Paper Sacrificial Window Demist Shields Operator
s Manual
