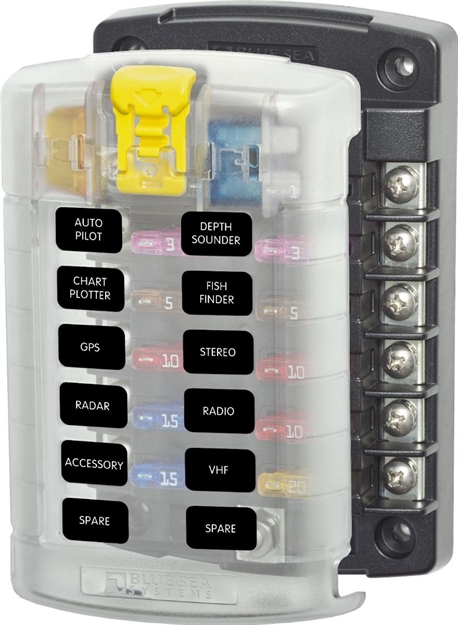

SCREW TERMINAL BLADE FUSE BLOCKS - COMMON SOURCED CIRCUIT FUSE BLOCKS
Compact ATO/ATC fuse block consolidates branch circuits & eliminates the tangle of in-line fuses for electronics & other appliances. Can be used for 24-hour circuits. Clear insulating cover w/label recesses accepts small format labels satisfies ABYC/USCG insulation requirements & provides storage for two spare fuses. Accepts ring terminals. Easy-to-open push-button latch provides easy access to fuses. Tin-plated copper buses & fuse clips. Positive distribution bus w/#10-32 stud. Maximum Operating Voltage: 32V DC. Maximum Operating Amperage: 30A (per circuit) 100A (per block). Screw Terminal: #8-32 screws w/Captive Star Lock washer. Mounting: #8 screw (M4). NOTE: Fuse blocks w/covers include 20 write-on labels. Fuses sold separately.
Type: 12 Circuit
Cover: Yes
