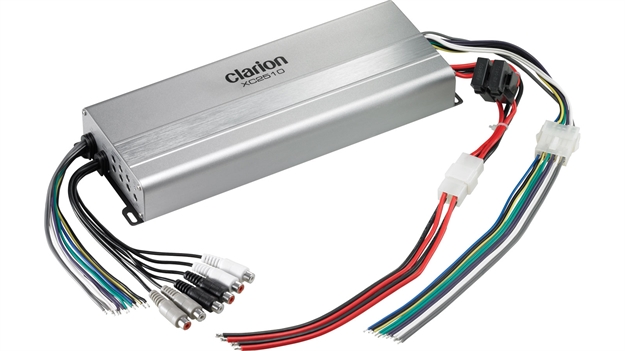

Clarion Corp OF America Mar Amplifier Compct 5-Chn

CLARION®


MICRO SIZE


5/4/3 CHANNEL CLASS D AMPLIFIER


•Compact Class D Amplifier


•Max Power Output: 700W


•Dimensions: 11.0"x4.3"x1.5"


•50W x 4 + 200W x 1 cont. @ 4 Ohms


•75W x 4 + 300W x 1 cont. @ 2 Ohms


•150W x 2 cont. @ 4 Ohms Bridged


•High Pass Crossover (FR/RR): Variable 15-250Hz


•Low Pass Crossover (SUB): Variable 35-350Hz


•Selectable Bass Boost: 0-12dB @ 50Hz


•2-Ohm Stability





CLASS D AMPLIFERS


•Class D Power Supply & Output Stages


•MOSFET Power Supply


•Circuit Design Achieves High Quality Sound


•Variable Gain Control


•Turn-On/Off Muting Circuitry (Soft Mute)


•Ground Loop Isolation Input Circuit


•Corrosion Resistant Nickel Plated Pigtail Connections (RCA/Speaker/Power)


•RCA & High Level Speaker Inputs


•Amplifier Power Standard CEA-2006 Compliant


•Circuit Boards Coated in a Moisture Resistant Polymer


•Pulse Width Modulation Regulated Power Supply


•Meets or Exceeds ASTM B117 (Salt Fog Exposure)


•Meets or Exceeds ASTM D4329 (UV Exposure)
