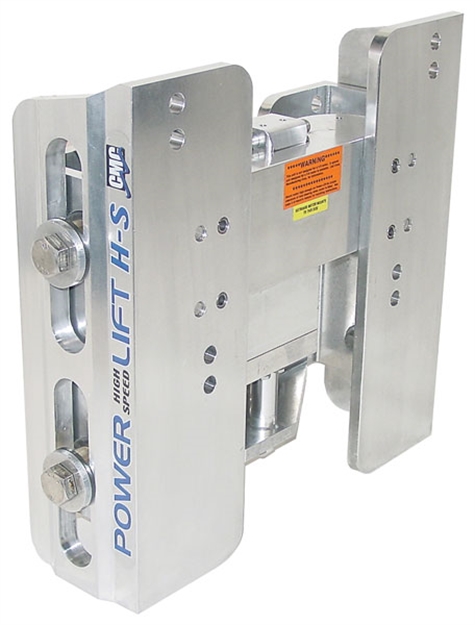

Cmc Trigger Pl65h5 W/Gauge

Made of 3/4" & 1/2" 6061 T6 alloy aluminum extrusions and fastened w/SS fasteners. Ideal for fresh or saltwater use. No welds or castings to break. Dependable self contained and water proof high speed hydraulic actuator has a max. Lifting capacity of 4417 pounds of thrust. You will have no problem lifting even a V6 300 hp max. Motor at full throttle. The hydraulic actuator is mounted inside the structure of the Power-Lft. yet it is fully accesible without removing the engine. There are no hoses to contain nor will you have to contend with mounting a pump and reservoir inside your boat as is the need with other transom jacks. The hydraulic actuator is completely self-contained with its own fluid reservoir (eliminate the need for hydraulic tank and hoses inside the boat). It contains a permanent magnet motor for more power and constant torque. The cylinder within the actuator has more lifting capacity than other transom jacks on the market. It contains a no-leak sealand wiper that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater. The patented roller friction design means less friction long wear less maintenance and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4" pin with aluminum-bronze alloy rollers. The roller is highly impact-resistant corrosive-resistant and has a high load carrying capacity. This patented design virtually eliminaes any chance of binding which is common with other transom jacks. The PL-65 HS is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket. A total of 8" of possible adjustment.
