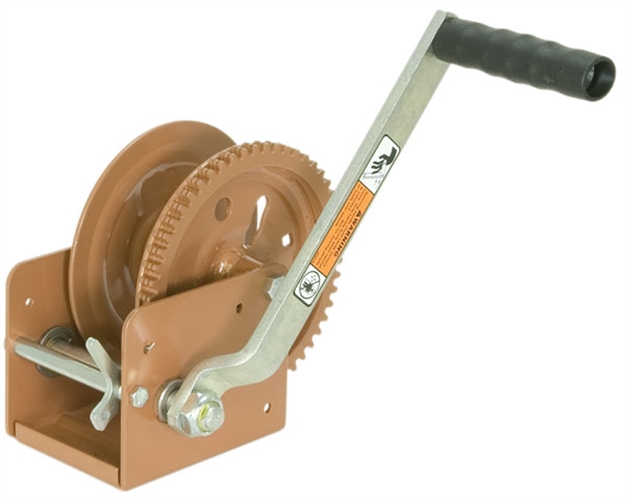

Dutton-Lainson Winch Hand Brz 1602A

All 2-speed models have drive shaft arrangement that allows both high & low speed cranking from one side. Load matched gear ratios for easier cranking hunting tooth gear system for more even wear longer life. All ratchet winches will freewheel when ratchet is disengaged. Reinforced arc-welded reels embossed reinforced bases; high carbon steel gears. "S" models (DL1100S) have 2" winch straps included. Cable clamp standard on 2-speed heavy-duty models (cable not included). Heavy-duty steel handles have molded grips (quick attach handle standard on 2-speed models). Permanently lubricated bearings on all drive shafts. All models equipped w/slots in reel for easy installation of winch straps. Powder-coated metallic copper bronze or zinc with Tuffplate. Not for movement of human beings. DUTTON-LAINSON PULLING WINCH SPECIFICATIONS Rated Capacity: based on direct line pull on the third layer of line on the drum. Capacity is reduced as line builds up on the drum. All units individually boxed. 5-year warranty.
