GARMIN

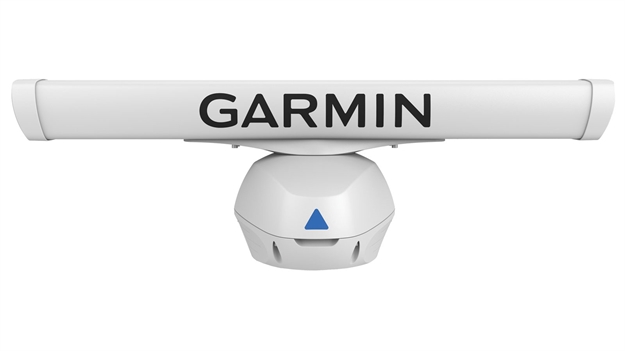

GMR FANTOM™ 4
•4 ft. Solid State Open-Array High Definition Radar fully integrates w/select Garmin chartplotters
•Transmit Power: 40W
•Range: 72nm (max) 6m (min)
•Antenna Length: 48"
•Programmable antenna parking position
•Beam Width: 1.8° horizontal 23° vertical
•Rotation Speed (RPM): 24/48 (conditions apply)
•Max Wind Speed: 80 kt
•MotionScope Dopler Technology
•Fully integrates w/select Garmin chartplotters
•IPX6 Water Rating
•8-Bit true color imagery
•Pulse Expansion
•Auto Bird Gain
•Echo Trails
•Dual Range with Overlay
•Dual Radar Support
•Dynamic Auto Gain
•Dynamic Sea Filter
•Radar Overlay
•MARPA Target Tracking
•Guard Zone
•Variable Range Markers (VRM) & Electronic Bearing Lines (EBL)
•Designed for easy install & use
•In The Box: GMR Fantom Radar Mounting hardware kit & template 15m Power cable (15m) Network cable (15m) & Software update microSD/SD™ card
Products specifications
| Manufacturer | GARMIN |
| Category | BOATING |
| SubCategory | BOATING-DEPTH & FISH FINDERS, Depth & Fish Finders |
| Stock Status | Out of Stock |
