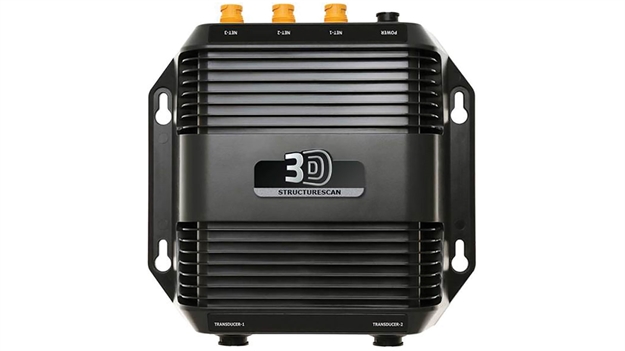

LOWRANCE
STRUCTURESCAN 3D MODULE
TECHNICAL/ENVIRONMENTAL
•Size (WxH): 7.1"x2.2"
•Wt.: 2 lbs
•Operating Temp: -20° to 167° F
•Water Resistance: 1PX-7
•Power Supply: 12 or 24 V DC
SONAR PERFORMANCE
•STRUCTURESCAN
-Output Power: 500w RMS
-Max Side Range: 300ft each side
-Max Down Range: 300ft
-Frequency: 455 & 800kHz
•CHIRP & SONAR FREQUENCY SONAR
-Output Power: 250w RMS
-Max Depth: 3500 ft (transdcuer dependent)
-CHIRP Frequency: 40-60kHz 85-145kHz 130-210kHz
-Narrow Band Frequency: 50 kHz/83kHz/200kHz
•CABLE CONNECTIONS
-Ethernet: 3 ports
-Power: 4 Pin power connector
-Transducer Port 1: Blue 7-pin sonar connector for CHIRP & narrow band transducers
-Transducer Port 2: Black 9-pin connector for use w/StructureScan HD & Spotlight transducers
Products specifications
| Manufacturer | LOWRANCE |
| Category | BOATING |
| SubCategory | BOATING-DEPTH & FISH FINDERS, Depth & Fish Finders |
| Stock Status | Out of Stock |
