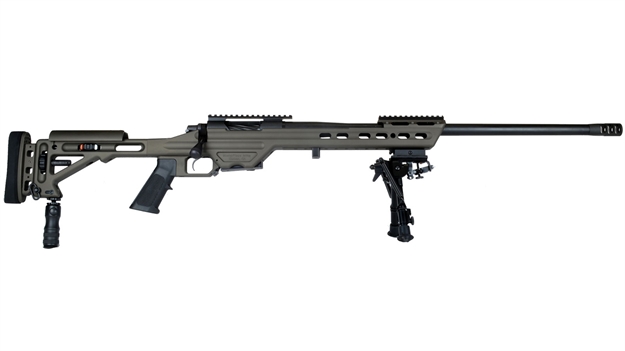

Mpa 6.5Creedmoor 24" TB 10Rd Blk

MPA6.5BA

Caliber – 6.5mm Creedmoor
Throated for Hornady 140gr A Max
Action – Stillers Precision TAC Series
Bolt – Stillers Precision Spiral Fluted One Piece Bolt
Barrel – Spencer/MPA Hand Lapped Barrel
Action/Bolt Design – Remington 700 Type
Chassis – MPA Tactical Aluminum Chassis
Muzzle Brake – MPA Muzzle Brake (Tactical or Bench Rest Type)
Timney Trigger – 510
User Locate-able Barrier Stop/Hand Stop
Magazine – AICS or AW Mag Compatible. (10 Round AICS Magazine Included)
Built In Bubble Level
Thumb Notch
Night Vision Bridge
Action

StillersMPA Precision TAC Series Premium Actions
Wire EDM Bolt Lug Raceways
All Critical Features are machined after heat treat (Hard Machining)
Recoil Lugs Ground to .0001″ Flatness and Parallelism

Bolt

Stillers/MPA Precision TAC Series Bolts One Piece Design of the Bolt, Lugs and Handle
CNC OD Ground on All critical features and dimensions
Spiral Fluting on all Bolts
All Bolts are Hand Lapped and Fitted to each individual action
Black Nitride

Barrel

Spencer/MPA Rifle Barrel
416RQ Stainless Steel
Precision Gun Drilled, Reamed and Honed
Pull Button Rifled
Stress Relieved
Hand Lapped
Bore and Land Inspected on Video Borescope
Sheffield Air Gage Inspection to .0001″ on Bore and Rifle Land Variation
Chamber is indicated within .0001″ or less – to the bore of the rifle
Chassis

Masterpiece Arms Tactical Chassis System Produced from 6061 Aluminum
V-Bedding System with Additional clearance for Glass Bedding Action and Straight Section of Barrel
MPA Buttstock with Adjustable Cheek Riser, Length of Pull and Monopod
Night Vision Bridge
Lower mounted Picatinny Rail
20 MOA Scope Rail
Cerakote Finish – Multiple Colors Available
Barrier Stop/Hand Stop
Built In Bubble Level
Thumb Notch
MPA Muzzle Brake

Each Brake is indicated in on the CNC lathe for zero runout – ensuring long range accuracy
Tactical Design
Direct Thread Attachment (5/8-24 on .308 barrel)

Trigger

Timney 510 Trigger or Rifle Basix L1

Accuracy Guarantee

3/8″ MOA

Rifle Case

Plano Basic Rifle Case

Specs

Chassis Weight – 5.2 lbs
Rifle Weight – 12.5 lbs (no mag or optic, 24″ Sendero Barrel Profile)
Barrel Twist – 1:8 (other twist rates available)
Barrel Length – 24″ Standard
Barrel Muzzle Thread – 5/8-24 TPI
Barrel Profile – Sendero Profile (others available)
Monopod – Included
Barrier Stop – Included
Front Bridge – Removable (Included)
Coating – Cerakote
Length of Pull – 13.75-15″
Trigger – Timney 510 (Calvin Elite or Rifle Basix, L1 or Lv1).
Trigger Pull – 1.5-4 lbs.
