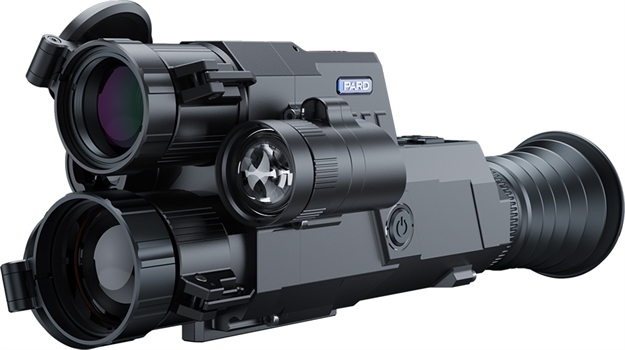

Landsat 640 Compact - Thermal Sensor Type Uncooled Vox(vanadium oxide) - Resolution(pixel) 640*512 - Pixel Size(um) 12*12 - NETD ?20mK?0.02?? - Frame Rate(Hz) 50 - Detection Distance(m) 2100 - Image Engine PARD IREA - Objective Lens(mm) 45 - Optical Magnification(x) 2 - Digital Zoom(x) 2/4/6/8 - Field of View (Horizontal) 8.8
- Field of View (Vertical) 8.8
- Field of View (Diagonal) 12.4
- Focus Range 3m-infinity - Visible Light Sensor - Resolution(pixel) 2560*1440 - Pixel Size(um) 2.9 - Sensitivity(lux) 0.001 - Frame Rate(Hz) Color mode: 60 / Mono: 30 - Image Engine PARD VLEA -Objective Lens(mm) 50/70 - Optical Magnification(x) 4.4/6.1 - Digital Zoom(x) 2 - Field of View (Horizontal) 4.8
/3.4
- Field of View (Vertical) 4.8
/3.4
- Field of View (Diagonal) 6.8
/4.8
- Focus Range 3m-infinity - Display - Type IPS - Resolution(pixel) 800*800 - Reticle Style 6 - Reticle Color 4(Red/White/Yellow/Green) - Scene Mode City/Rain/Forest - Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY - Eye Relief(mm) 100 - Diopter Adjustment(D) -5 +3 - Photo / Video - Photo Resolution(pixel) 1536*1536 - Photo Format .JPG - Video Resolution(pixel) Thermal: 768*768/Night Vision: 1440*1080 - Video Format .mp4 - Storage(GB) Micro SD card (Max. 128) - Main function- LRF Detection Range(yd/m) 1200/1000 - Ballistic Calculator Yes - PIP Yes - Gyroscope Yes - Loop Recording Yes - Recoil-activated Recording Yes - E-compass Yes - Shutter Mechanical shutter - Microphone Yes - Firmware Upgrade Yes - IR Illuminator - IR Power(W) 5 - IR Illuminating Level 3 Levels - IR Distance(m) 350 - IR Wavelength(nm) 850/940 - Interfaces - USB Type-C Yes - HDMI Output Yes - Connections - WiFi Yes - Supported Apps PardVision2 - Power Supply - Battery Type Li-ion 21700*1 - Output Voltage(V) 3.7 - Operating Time(h) ?6 - External Power Supply Type-C - Environmental Characteristic - Degree of Protection IP67 - Operating Temp(
C/
F) -30 +55 / -22 +131 - Recoil Resistance(J) 6000 - Material - Housing Aluminium Alloy - Objective Lens All-glass multi-coated lens - Measurement - Product Dimension(L x W x H mm) 265*92*90 - N.W/pcs(with IR illuminator&LRF&battery g) 785
