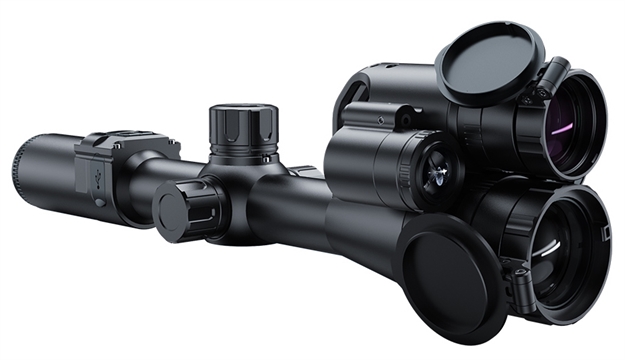

Pard Optics Td62 Multi Spectral 45Mm 640X512 W/Lrf TD6270850F

Model TD62-70 - Classification Multi-spectral Thermal/Night Vision Scope - Thermal Sensor - Type Uncooled Vox IR Sensor - Resolution(pixel) 640*512 - Pixel Size(
m) 12*12 - NETD ?25mK?0.025?? - Frame Rate(Hz) 50 - Human Detection Distance(m) 1800 - Vehicle Detection Distance(m) 3300 - Image Engine PARD IREA - Objective lens(mm) 45 - Optical Magnification(x) 2 - Digital Zoom(x) 2 - Continuous Digital Zoom(x) 2-4 - Field of View (HxV) Horizontal 5.6
- Vertical 5.6
- Diagonal 7.9
- Focus range 3m-infinity - Visible Light Sensor - Type CMOS Sensor - Resolution(pixel) 2560*1440 - Pixel Size(?m) 2.9 - Sensitivity(lux) 0.001 - Frame Rate(Hz) 30 - Image Engine PARD VLEA - Objective Lens(mm) 70 - Optical Magnification(x) 3.2 - Digital Zoom(x) 2 - Continuous Digital Zoom(x) 3.2-6.4 - Field of View (HxV) Horizontal 3.4
- Vertical 3.4
- Diagonal 4.8
- Focus range 3m-infinity - Display - Type IPS - Resolution(pixel) 800*800 - Reticle Style 6 - Reticle Color 4(Red/White/Yellow/Green) - Scene Mode City/Rain/Forest - Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY - Eye Relief(mm) 100 - Diopter Adjustment(D) -5 +3 - Photo / Video - Photo Resolution(pixel) 2592*1944 - Photo Format .JPG - Video Resolution(pixel) Thermal: 1024*768/Night Vision: 1440*1080 - Video Format .mp4 - Storage(GB) Micro SD card (Max. 128) - Main Function - LRF Detection Range(yd/m) 1200/1000 - PIP Yes - Gyroscope Yes - Loop Recording Yes - Red Dot Yes - E-compass Yes - Shutter Mechanical shutter - Microphone Yes - Firmware Upgrade Yes - IR Illuminator - IR Type VCSEL - IR power(W) 5 - IR Illuminating Level 3 Levels - IR Distance(m) 350 - IR Wavelength(nm) 850/940 - Interfaces - USB Type-C Yes - HDMI Output Yes - Connections - WiFi Yes - Supported Apps PardVision - Power Supply - Battery type Li-ion 21700*1 - Output Voltage(V) 3.7 - Operating Time(h) ?6 - External Power Supply Type Type-C - Environmental characteristic - Degree of Protection IP67 - Operating Temp(
C/
F) -20 +50 / -4 +122 - Recoil Resistance(J) 6000 - Material - Housing Aluminum Alloy - Objective lens All-glass multi-coated lens - Measurement - Product Dimension(L * W * H mm) 350*91*95 - N.W/pcs(without battery g) 800
