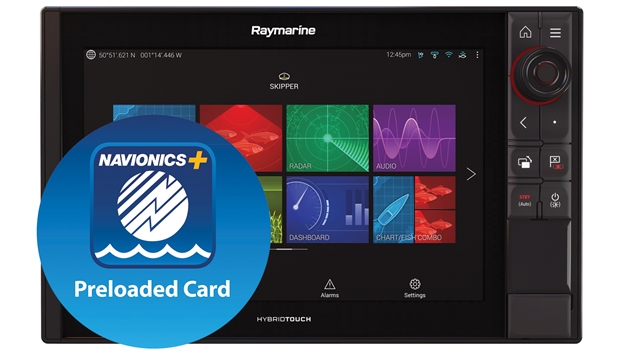

AXIOM™ PRO SERIES
HIGH PERFORMANCE MULTIFUNCTION NAVIGATION DISPLAYS
•Model: AXIOM PRO RVX 12
•Display Size: 12.1"
•Supplied With: RealVision 3D (with GPS Track) & 1kW CHIRP Sonar + Navionics+ North America Charts (NAV+)
•NOTE: AXIOM PRO RVX models have a 25-pin RealVision™ type connector + 11 pin 1kW type connector
•Rugged Super-Bright (1200 nit) intuitive HybridTouch™ Display (touch screen or keypad control)
•Powered by intuitive LightHouse 3 OS
•Quad Core Processor
•Wi-Fi & Bluetooth 4.0 connectivity
•Ready to Network with NMEA2000 & NMEA0183 connectivity
•Supports Full Line of Raymarine Accessories including:
-Quantum Radar
-Chirp Sonar (accepts CP470 & CP570 CHIRP sonars)
-FLIR Thermal IP & Analog Video Cameras
-Marine Audio Control & Integration from Rockford Fosgate
-Evolution Autopilot Control
-Empirbus Digital Switching Systems
•Enhanced thermal awareness with Clear Cruise™ IR Analytics when combined with (optional) FLIR M132/M232 thermal cameras
•Built-In 10 Hz 72-Channel GPS/GLONASS receiver with fast update (GA150 port for optional GA150 antenna)
•16GB Internal Memory
•Two microSDXC slots)
•USB microAB port (rear)
•Waterproof Rating: IPX6 / IPX7
•Mounting Options: Front & Trunnion Mount
•In the Box: MFD Mounting Hardware Suncover & Power/Video/NMEA2000 Cable Micro-C/ STNG cable & RayNet/RayNet cable
