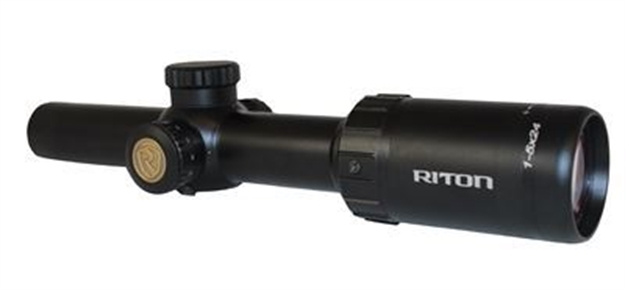

Our Mod 7 1-5x24IR Second Focal Plane optic with an illuminated Quick Acquisition (QA) Reticle allowing for incredibly fast target sighting no matter what the light level or circumstances. Great for almost any use you can think of.
Backed by The Riton Promise: Unlimited Lifetime Warranty.
Features Summary:
- FWB@ Full Wide Band Coating, and Fully Multi-Coated Optics
- LLE@ Low Light Enhancement Coating
- 30mm One-Piece Tube
- Aircraft Grade Aluminum with Rugged Design Ready for the Toughest Environments
- 100% Waterproof, Fogproof and Shockproof (tested up to 1200 G’s)
- Dry-Argon Purged and Filled
- 1/2 MOA Capped Windage and Elevation Adjustment
- Fast-Focus Eyepiece
- Assembled in EP-Level Clean Room
- Extreme Wide Field of View Enables Fast Target Engagement
**Reticle Pictures shown above ENHANCED to show detail – does not depict overall scale**
Product Specifications:
- Magnification: 1-5
- Parallax Adjustment: Fixed
- Tube Diameter: 30mm
- Objective Lens Diameter: 24mm
- Focal Lens Position: Second Focal Plane
- Lens Coating: Fully Multi-Coated, FWB@, Waterproof Coated, LLE@
- Reticle: Riton QA (Quick Acquisition) Illuminated Reticle Mod 1
- Field of View (ft@100yds): 114.2@1x – 22.6@5x
- Material: 6061 Aircraft Grade Aluminum
- Weight (oz/g): 20/566
- Length (in/mm): 10.5/266
- Eye Relief (in/mm): 3.9/100
- Exit Pupil (mm): 20@1x/4.8@5x
- Click Value (in@100yds/mm@100m): 0.5/12.7
- Adjustment Range: 180 MOA
- Mounting Length (in/mm): 6.8/172
