XTREME™ MECHANICAL STEERING SYSTEM
STANDARD SYSTEM NFB

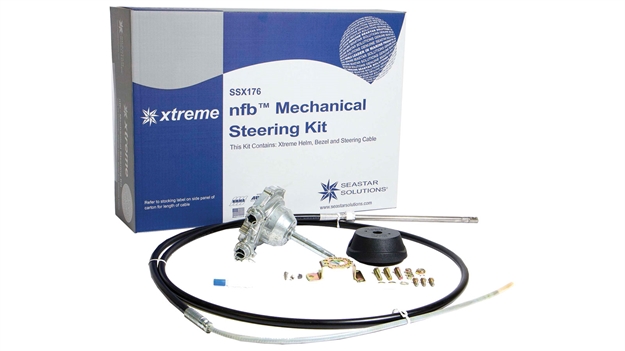

XTREME™ NFB HELM BEZELHARDWARE KIT & XTREME™ QC STEERING CABLE - 19'
System is designed to deliver the most efficient mechanical steering possible. Least effort least lost motion smooth release of NFB clutch with the best holding power. 30% reduction in steering wheel effort compared to the 4.2 Helm. Quick connect feature on both cable & spent travel tube side. Normal steering cable installation side marked on casting. No tools required to snap steering cable or spent travel tube in place. Easy system installation single steering cable to route with standard 8" bend radius for the cable. No bleeding of hydraulic system or electrical wiring required. Fits standard Teleflex dash cut out with standard Safe-T and 4.2 bracket. Gear train is custom designed by Teleflex to allow the smallest foot print with the lowest effort available in a mechanical Helm. Helm has smaller footprint than the current 4.2 Helm. Also has an improved NFB clutch "feel" to allow smoother clutch release. "XTREME" Steering Cable designed for this helm. Cable offers lower backlash & is more efficient than a standard steering cable. Helm is part of a system and must use the XTREME SSCX64 Steering Cable. New bezel design for standard Helm. Helm is available as a NFB or non NFB design. Label w/designation of clutch next to steering cable connection to identify the style of helm. Outer helm casting is a zinc alloy with new design for the clutch mechanism. All castings are designed to reduce weight while offering superior strength.
