Tie Down End Inside Corner

DOCK SYSTEM
A. Outside Corner (Female) -Two 1/2'' welded tabs. Use w/male outside corner. Each leg is 10''Lx5''H. Part # 26521
B. Outside Corner (Male)-One 1/2" welded tab. Use w/female outside corner to connect docks end to end. Joint requires 3/4" bolt set (N) or connector pin (O). Leg is 10"Lx5"H. Part # 26522
C. Outside Corner End-Use at ends of fingers & docks. Ideal for swim floats & ski jump corners. Leg is 10"Lx5"H. Part #26523.

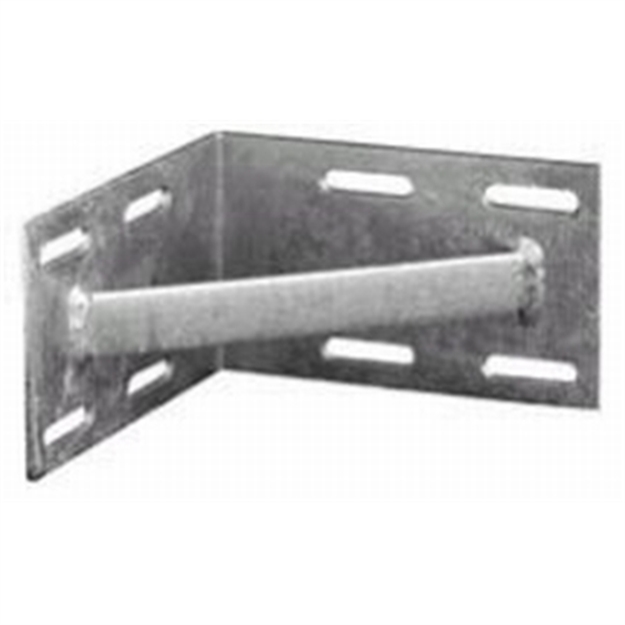

D. Inside Corner-Use with outside corners. Leg with elongated holes. 8-1/4"Lx5"H. Part # 26524.
E. Inside Corner/Pipe Holder 3" (Part # 26525) Inside Corner/Pipe Holder 2" (Part # 26526)-Use with outside corners. Internal pipe holder to be used with either 2" pipe (Part # 26525) or 1-1/2" pipe (Part # 26526). Welded gusset. 8-1/4"Lx5"H. Requires carriage bolt set(M) for attaching.
F. Angle-Use for all cross supports. 2-1/2"Lx5"H. Part # 26527.
G. Female T Connector-One welded 1/2" tab. Bolts to side of dock to attach fingers & ramps. Measures 5"Lx5"H. Part # 26528.
H. Male T Connector-One welded 1/2" tab. Use with female T connector to attach fingers & ramps. Measures 5"Lx5"H. 3/4" bolt set(N) required for joint. Part # 26532.
I. Washer Plate-Use 2 washer plates with each angle. 1-1/2"Lx5"H. Part # 24284.
J. Chain Retainer-Bolts to side of dock. Use weights & chains to hold dock in place. Accommodates 1/4" 3/8" & 1/2" chain. 5"Lx5"H. Part # 26529.
K. Pipe Holder/Outside 3"-bolts to outside of dock. Carriage bolt set (M) required for attaching. Use 2" pipe to hold dock in place. Part # 24280.
L. Lag Bolt Set-bolt & flat washer hot dipped galvanized used to attach flotation drums to dock system. Part # 24288.
M. Carriage Bolt Set-used to attach A thru K component parts. 3/8"x2-1/2" bolt flat washer & nut. Hot dipped galvanized. Part # 26530.
N. 3/4" Hex Head Bolt Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4"x3-1/2". Part # 24278.
O. Connector Pin Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4" connector pin & hitch clip pin. Part # 26531.
ALSO AVAILABLE - NOT PICTURED - Part # 26413. Back Up Plates.
All Hardware is designed to use with 1-1/2" thick lumber minimum width 6" and is mounted with 3/8" carriage bolts(M). All male & female dock to dock connectors are made with either 3/4" bolts with lock nut(N) or 3/4" connecting pins(O). Tie Downs' Wood Dock Plan Kit will show the basics on construction for this lightweight and long-lasting floating dock system.
