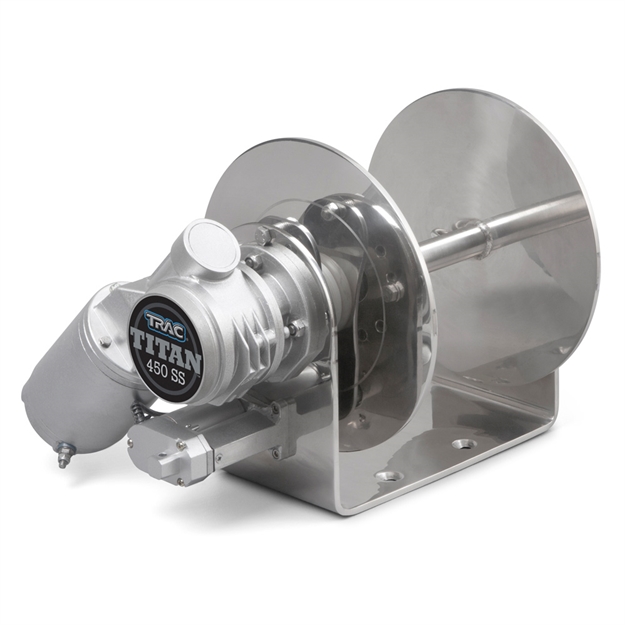

Trac Outdoor Products CO Drum Anchor Winch

TRAC

TITAN 450 SS DRUM WINCH

An alternate to capstan style windlasses Features both Free-Fall & Power Up/Down operations Winds both rope & chain on & off Suitable for most styles & sizes of boats Fits neatly into anchor well or mounted on deck Motor can be mounted at 30 40 & 90 to suit the configuration of the anchor well 316 marine-grade stainless steel construction Sealed 8-gauge battery lead wires (2m) Includes winch sealed membrane mounted switch control unit w/internal over-current swich solenoid 60 amp circuit breaker & mounting hardware (wire sold & bow roller separately) Mounting Bolt Pattern (LxW): 3-3/8" x 3-1/2" (4-bolt staggered) Usage: 15-25 amps (normal); up to 60 amps (max.) Size: 15.2" x 11.0" Capacity: 450 lbs. (lifting); 4000 lbs. (holding) Line Speed(ft./min.): 500 (Free-Fall); 80 (Power Down); 70 (Power Up) Max Working Load: 175 lbs. (anchor + rode)
