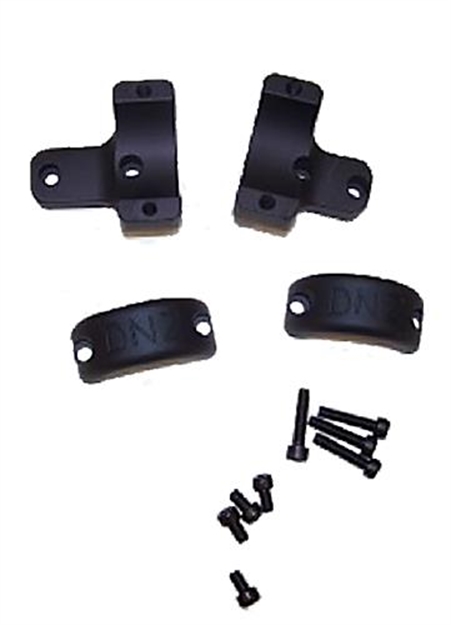

Dnz Hunt Masters Signature Howa 2-Pc Base And Ring, Aluminum Vanguard, Black Finish 701M2

For Howa 1500, Mossberg 100ATR, 4X4, Patriot, MVP, Weatherby Vanguard, Remington 700,721,722,725 (fits all action lengths): Base screws are 6-48 X 1/4? long. Ring screws are 6-40 X 5/8? long. Both use a 7/64 Allen wrench. Hole spacing dimensions on front mount is .86? and on back mount it is .60?. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63? wide and Tactical rings are .80? wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is X low .86, low .98?, medium 1.10?, and High 1.23?.

DNZ 701M2 Hunt Masters Signature
Howa 2-Pc Base and Ring, Aluminum
Vanguard, Black Finish
Model: 701M2
Prop 65 Cancer Causing Chemical: Not Applicable
Prop 65 Exempt Reason: Exempt because manufacturer employs fewer than 10 individuals
Prop 65 Item: Exempt
Prop 65 Labeled: No
Prop 65 Reproductive Harming Chemical: Not Applicable
Prop 65 Settlement: No
Ring Height: Medium
Ring Size: 1 inch
Scope Base Model: Howa
Scope Base Piece/s: Two Piece
Scope Base Style: Vanguard

Specifications
